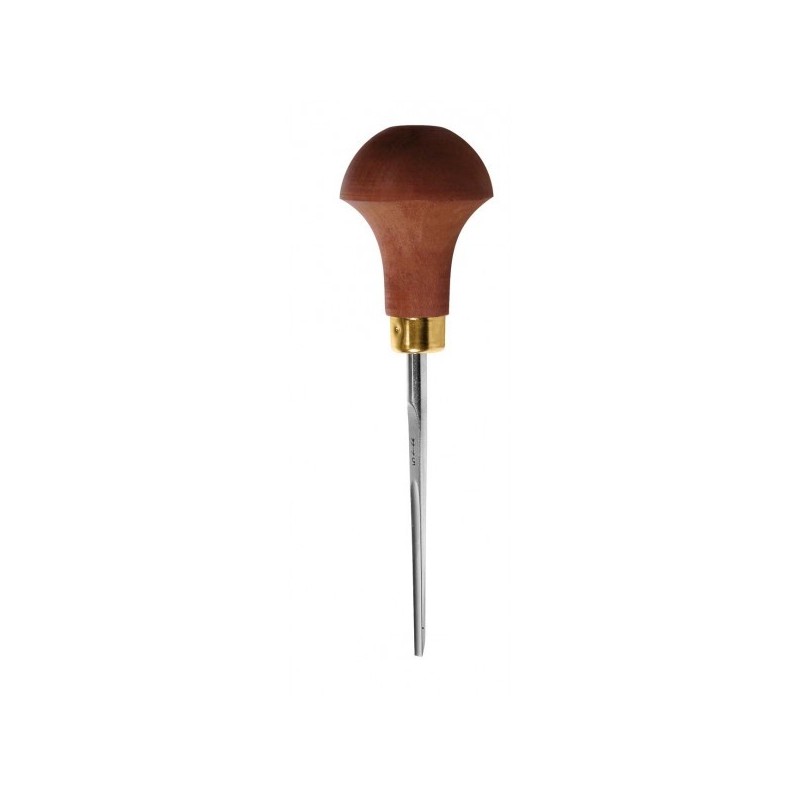

Pfeil gouge

Name: Pfeil gouge
Brand: Pfeil
Price: 32.4 EUR
Availability: InStock

Pfeil

€32.40 €27.00 HT

Price from €32.40

Volume discounts

Quantity	Unit discount	You Save
6	15%	Up to €29.16

Model

REF ★★★★★

REF

Professional gouges for wood and lino cutting, manufactured by the swiss company Pfeil.
Wooden pear handle with oil finish.
Blade made of chrome vanadium steel.
Blade length: 80mm
Overall length: 135mm
All pfeil gouges are sharpened and honed, ready to use.

Cutting edges diagram:

First digit denotes profile of the cutting edge.
For example: 1=flat (chisel), 5=curved (almost flat), 11= U-shape, 12 = V-shape
Letter after first digit denotes special shape:
s = oblique cutting edge
Second digit denotes width of cutting-edge, measured side to side in mm.
L12/1 = 1mm, B5 /12 = 12mm

L1/8	flat gouge (chisel) 8mm
L1s/8	flat gouge (chisel) oblique 8mm
L5/3	curved gouge 3mm
L5/8	curved gouge 8mm
L7/6	curved gouge 6mm
L7/10	curved gouge 10mm
L8/3	curved gouge 3mm
L8/7	curved gouge 7mm
L9/2	curved gouge 2mm
L9/5	curved gouge 5mm
L11/0,5	curved gouge 0,5mm
L11/1	curved gouge 1mm
L11/2	curved gouge 2mm
L11/3	curved gouge 3mm
L12/1	V-shaped gouge 1mm
L12/4	V-shaped gouge 4mm
L15/2	V-shaped gouge 2mm
B5/12	curved gouge 12mm
B9/10	curved gouge 10mm
