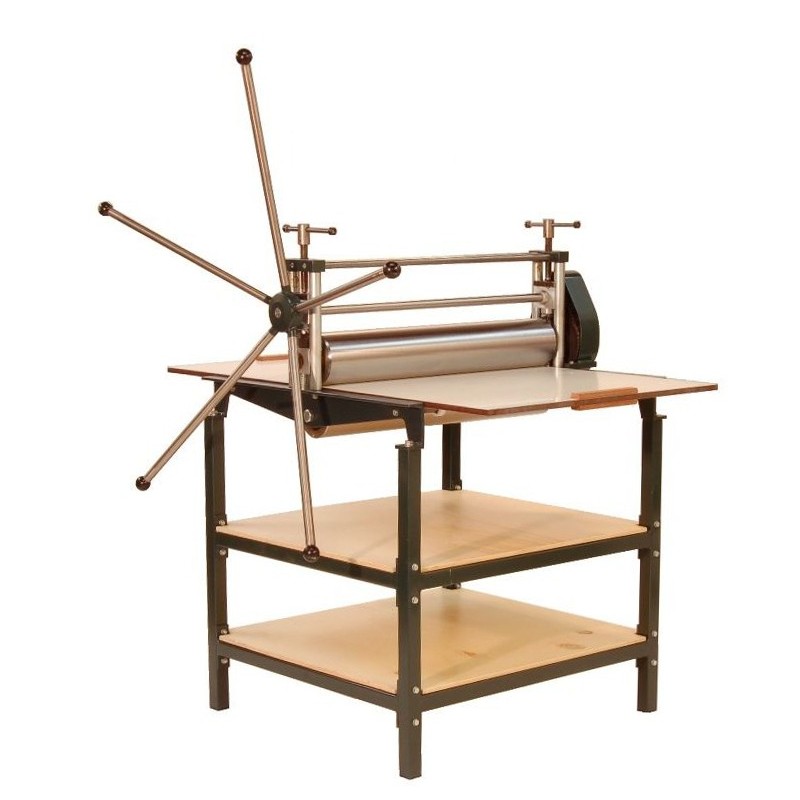

HPV 80 (*)

Polymetaal

€5,920.70 €4,933.92 HT

Ask for a quote Plus que 2 articles en stock !

REF 409701

HPV-80
REF 409701

The distinguishing feature of this press is the upper roller drive. A gear ratio of 1:3,5 ensures a uniform motion during the printing process. Heavy duty double chains that drive the gearing are enshrined by a safety cover on the opposite side of the press as the driving wheel. Easily accessible screws are used to bring in the slack on the drive chains.
If the spindles are loosened, the upper roller is raised by spring pressure. Shims of cardboard can be placed under the pressure spindles to give more flexibility to the press (useful to compensate for irregularities when printing woodcuts or lino).The spokes of the star wheel are made of stainless steel. The upper roller has self lubricating bronze bearings and the lower roller ball bearings. The stand has two plywood shelves.

Bed size 80 x 130cm
Bed thickness 1,5 cm
Length of roller 80 cm
Diameter upper roller 13 cm
Diameter of lower roller 12 cm
Wall thickness of rollers 1,5 cm

- Length (of side frames) 85 cm
- Width (incl. star wheel) 135 cm
- Height (without stand) 52 cm

Gearing ratio (double chain) 1:3.5
Diameter of star wheel 127 cm
Max. opening between bed and upper roller 5 cm
Screw thread of pressure spindles (metric) M 20
Weight of the press 170 kg
Dimensions of the stand HxWxL 80x89x84cm

To ask for a quotation, please fill in the form

409701
Technique
Block printing
Etching engraving
Monotype
Plate lithography
