FORTEX
Delivery in 4 to 6 weeks
REF

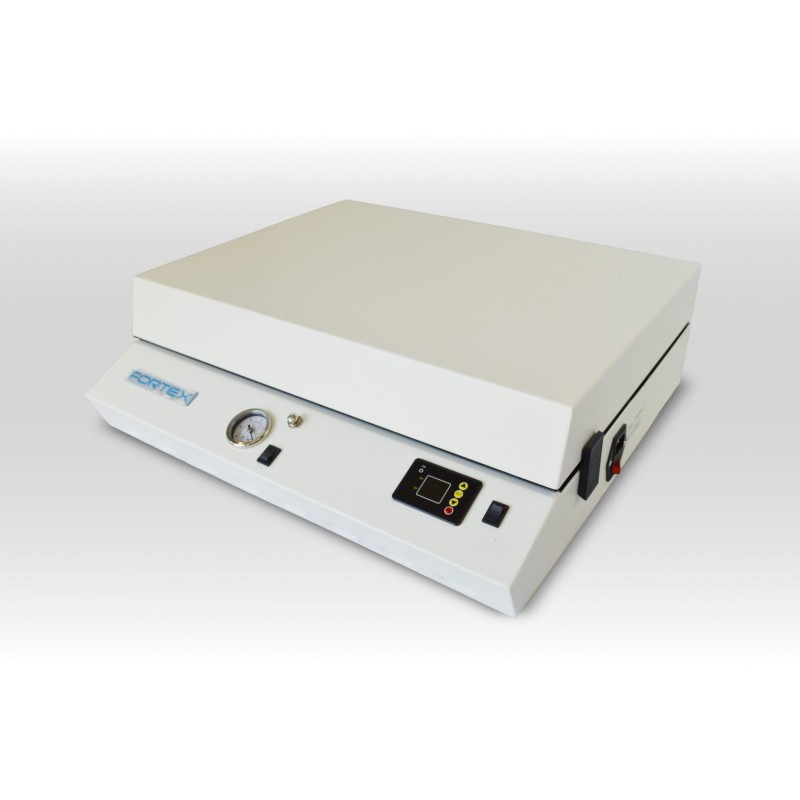

UV led exposure unit - with vacuum - A4 (355 mm x 260 mm exposure area)
Ideal for working with:
Vacuum exposure provides optimum definition.
Unlike pressure-buffered units, the AZ series of machines uses a vacuum to ensure that the transparency and the material to be exposed are kept in perfect contact.

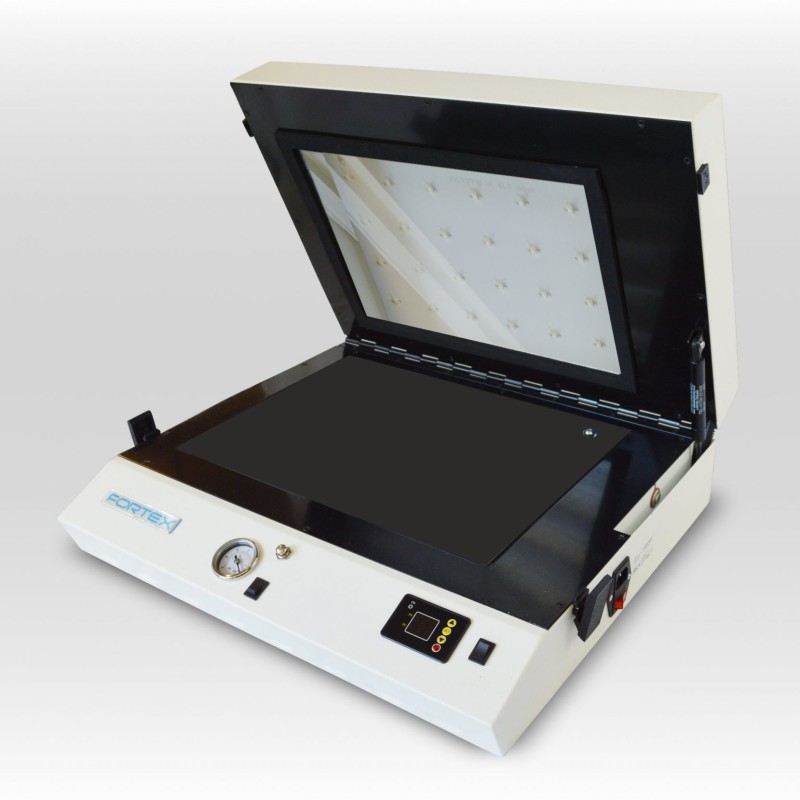

The vacuum system consists of a rubber frame that presses against a glass plate, allowing a flexible membrane to press against the glass plate.
An adjustable timer selectable from 0 to 999 seconds is fitted to give the operator a wide range of exposure times.

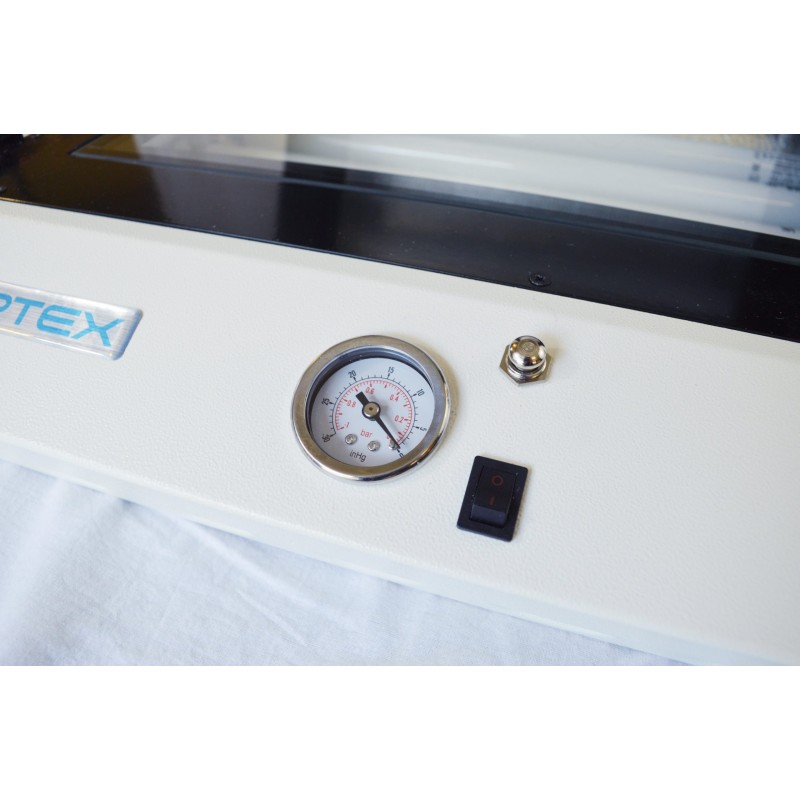

The machine is also equipped with a vacuum gauge to check the vacuum level before activating the UV leds. Vacuum down to -0.5 bar.
All units are fitted with an IEC socket and a 13-amp moulded plug.
Special UV LED (actinic led) emit a wavelength of 350 to 400 nm (UV A).
An AZ series machine in operation:
These units are designed and manufactured in the UK
Technical data:
Model: AY315
Working area: 355 x 260 mm (14.2″ x 10.24″)
Timer: 0 - 999 seconds
UV output: to be updated
Unit dimensions: 550 x 485 x 170 mm
Weight: 15,0 kg
* not suitable for silkscreen frames
